Building an arm for a torsion machine this large has been very challenging. A list of our failures in this area might provide some hints on what not to do.

Our latest arms are made from some high tech stuff provided by Custom Composite Technologies Inc. This would not have been possible without Steve's help!

Steve cuts open our old fiberglass arms to figure out what was in them. This gave him a good sense on what was needed to break them.

The Core of the New Arms

The core of our arms are made of three key pieces.

The ash core was made out of many pieces of 1" rough cut ash planks. These were planed down, fitted together and then screwed together. The dry block then had a V notch cut out of it.

The dry boards were then unscrewed, cleaned, and sorted. Stiff steel rods (1/8" diameter) were then used through the screw-holes to line everything up during the gluing and setting process.

The purpose of the ash core is to provide lots of impact strength in the base of the arm where it strikes the stanchions. The base of the V notch sits outside the impact zone. Another purpose of the ash is to prevent the rope bundles from crushing the arm.

Foam cores made from 7lb density atc foam stretch away from the ash cores. Unlike our last set of arms this foam will add to the strength and stability of these arms.

Next to these foam cores you can see a 2" carbon-fiber pipe. This pipe was bonded onto the tips of the arms. It will later hold our bowstring pin in place.

The foam layers were bonded together, then split in the opposite direction. The original layering was done for ease of creating a taper. The split was to put an I (as in an I-beam) in the direction of load. The flange in the eye is made of 34oz stress quad fiberglass and a single layer of hardwire. The hardwire is there to hold the arm together if they break, though they would likely not shatter in pieces without it either.

In this picture, you can see the bonding layers between the originally cut foam slabs. In the blue release, you can see dent from the I beam flange. In the background you can see Dave explaining things to the camera man who came to film the adventure.

The ash core was bonded to the foam using cabasil and a brown thickener. A messy process that resulted in many a chocolate frosting joke.

The carbon fiber tube was also glued in the same way. (The black bit at the end of the arm here.)

Kevin was charged with tracking the temperature as the resin in the bonding agent cured, holding the tube onto the end of the foam.

The Fabrics

After the core had been bonded together and had a chance to cure over lunch, it was time to wrap the whole thing.

First the raw materials had to be shaped and organized. here Roger is cutting out 25' long strips of carbon fiber uni. Three strips of these were wrapped over each arm.

Those strips, plus big sheets of biaxial carbon fiber were then bagged, and pre-wet with resin. This makes sure that the resin completely permeates between all the different fibers in these sheets. Air bubbles can cause small weaknesses in the fabricated beam.

Roger also spent a lot of time measuring and cutting long strips of kevlar. This kevlar is destined to provide extra durability and resilience to the arm.

Again, the cameraman was taking lots of video of the arm fabrication process.

The Wrap

The completed arm cores were then sanded down, cleaned up, and here Steve applies a layer of resin onto the arms for the very first wraps.

The first wrap of biaxial carbon fiber goes on. These large sheets wrapped the entire arm.

The long strips of carbon fiber were then brought over, and carefully placed over the load bearing surfaces. After that, 12 short strips of uni were wrapped at a bias around the arm to add sheer strength the the top and bottom.

After the arm was wrapped a second time in biax, the Kevlar was then spiraled around the arm. This adds more sheer strength onto the webs of the arms, and improves the resilience from striking forces.

Curing and Releasing

After they were all done being made, the arms were put into bags, and placed under vacuum. The vacuum pulls out any air and excess resin that ended up on the arms after this process. It also compresses the fibers together, which lets them be much stronger.

The arms were then baked under electric blankets overnight. Putting them under heat helps cure the resin which can have a long working time. Without the heat, they may have still been sticky in the morning.

The bags then had to be removed, and the release, and special absorptive cloth had to be removed using manly methods of hammer and crowbar. Beneath the golden hue of ballista arm perfection peaked out.

The first part of arm construction is complete. Steve, Roger and Eric hold up one of the arms.

The Arm Tips

While the arm fabrication process was super cool and complicated, getting the bowstring attachment points molded in proved to be a challenge. We had to fabricate new aluminum pins that go through the carbon-fiber tube, and also reinforce the tips to distribute the point-load.

First, the arm tips were smoothed out with cabasil, and then pads of carbon fiber are added onto the tips.

Next, the material rough bits were sanded off, and a hole was cut into the tube we had inserted earlier. A router flushing bit was used against the inside edge of the tube to make sure we had a nice clean and round path through the arm.

A new pin made by Jeff was then centered into the hole, and bonded in with resin. A plug of cabasil was used to keep the resin from leaking out the bottom.

A few hundred individual carbon fiber threads were then pulled out of some fabric, and carefully organized. Each thread was dipped in resin to pre-preg it, then carefully wrapped around the pin in the load bearing direction.

After the tows were all added, this picture shows them still shiny with wet resin. Here you can see that the tows wrap around the pin, then deviate in slightly different directions across the arm. This will transfer the pin load across the face of the arm, removing extreme point load. This also means that the arms can only ever be used in one direction.

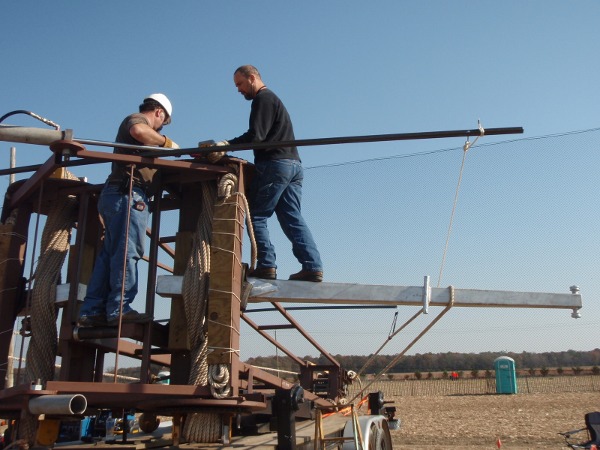

Installation of the new arms

Unfortunately, the tight schedule we had to get everything ready for filming for the History Channel meant the arms were installed into the machine before we were done! Here Kevin is whipping up our last batch of cabasil which was used to smooth out the arm tips. All that resin and carbon fiber tows caused a bumpy sharp surface which would be vary bad for our bowstring.

The finished product under load.... and in the rain.

While you can see flex in these arms, they are not nearly as bendy as our original fiberglass arms. You can also see the brownish tips from the cabasil mentioned in the previous image.

Once again: Thank You Steve, of Custom Composite Technologies Inc. for these wonderful new arms. They work well. Huzzah!
